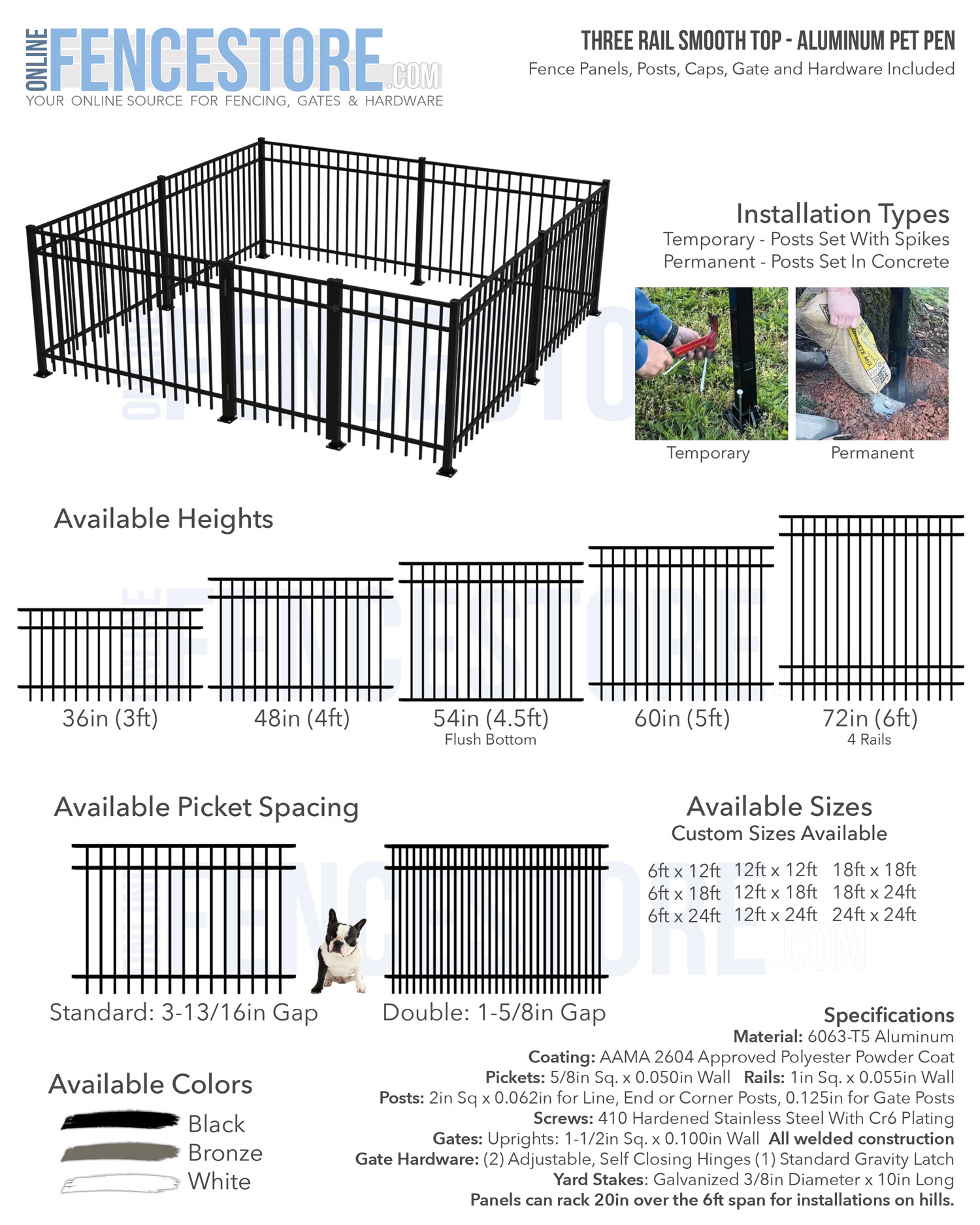

Three Rail Smooth Top Aluminum Pet Pen

Three Rail Smooth Top - Aluminum Pet Pen
Complete Pen Ready For Installation. Includes fence panels, posts, (1) 3ft wide gate with hardware, post caps and post mounting screws. Welded post mounts and yard stakes included with temporary installation option.

Available Heights
36in (3ft), 48in (4ft), 54in (4.5ft) Flush Bottom, 60in (5ft), 72in (6ft) 4 Rail
Need a 48in Flush Bottom or 54in Non-Flush Bottom? No Problem. All heights can have the bottom rail configured to be Flush Bottom or Non-Flush Bottom on request. To order a configuration that is not shown, please comment in the Customer Notes field the different bottom configuration that you would like. For example: "36in Flush Bottom" or "54in Not Flush Bottom"

Picket Spacing
Standard spacing is 3-13/16in and double spacing is 1-5/8in. The 1-5/8in spacing is the perfect choice for small pets.

Installation Type
We offer our pet pens in temporary or permanent installation types. Temporary pens will have a four hole, floor mount bracket welded to each post. Once the pen is assembled, simply drive four stakes though each hole in the welded base. Temporary pens will include all panels, posts with welded bases, four spikes per post, (1) 3ft wide gate with hardware, post caps, and post mounting screws. Permanent pens are designed to be mounted in the ground with concrete. Each post will be approximately 2ft longer than the height of the fence to be mounted into the ground. Permanent pens will include all panels, posts, (1) 3ft wide gate with hardware, and post mounting screws. Please Note: Temporary pens are not recommended for sandy areas or areas with loose soil conditions.

Visit our YouTube channel to see how to install our pet pens.

Available Sizes (Custom Sizes Available)
6ftx12ft, 6ftx18ft, 6ftx24ft, 12ftx12ft, 12ftx18ft, 12ftx24ft, 18ftx18ft, 18ftx24ft, 24ftx24ft

Available Colors - Gate Hardware Is Only Offered In Black
Black, Bronze, White

Specifications
Material: 6063-T5 Aluminum
Coating: AAMA 2604 Approved Polyester Powder Coat
Pickets: 5/8in Sq. x 0.050in Wall Rails: 1in Sq. x 0.055in Wall
Posts: 2in Sq x 0.062in for Line, End or Corner Posts, 0.125in for Gate Posts
Screws: 410 Hardened Stainless Steel With Cr6 Plating
Gates: Uprights: 1-1/2in Sq. x 0.100in Wall - All welded construction
Gate Hardware: (2) Adjustable, Self Closing Hinges (1) Standard Gravity Latch
Yard Stakes (for temporary installations): Galvanized 3/8in Diameter x 10in Long
Panels can rack 20in over the 6ft span for installations on hills. In order for the panel to rack, we double punch our rails. This simply means that the length of the hole in the rail is twice as long as the picket.

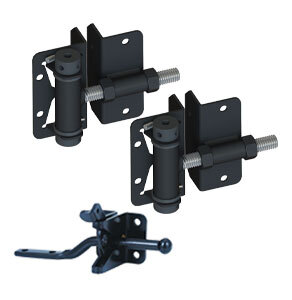

Included Gate Hardware
(2) Adjustable, Self Closing Hinges, (1) Standard Gravity Latch

Additional Resources

General Specification Sheet

Fence Panel Dimensional Specification Sheet

Warranty Information
We offer a limited warranty on all of our aluminum fence products. For full warranty information visit our "Warranty" page HERE.
