600 or 1200lb Electromagnetic Gate Lock

600 or 1200lb Electromagnetic Gate Lock

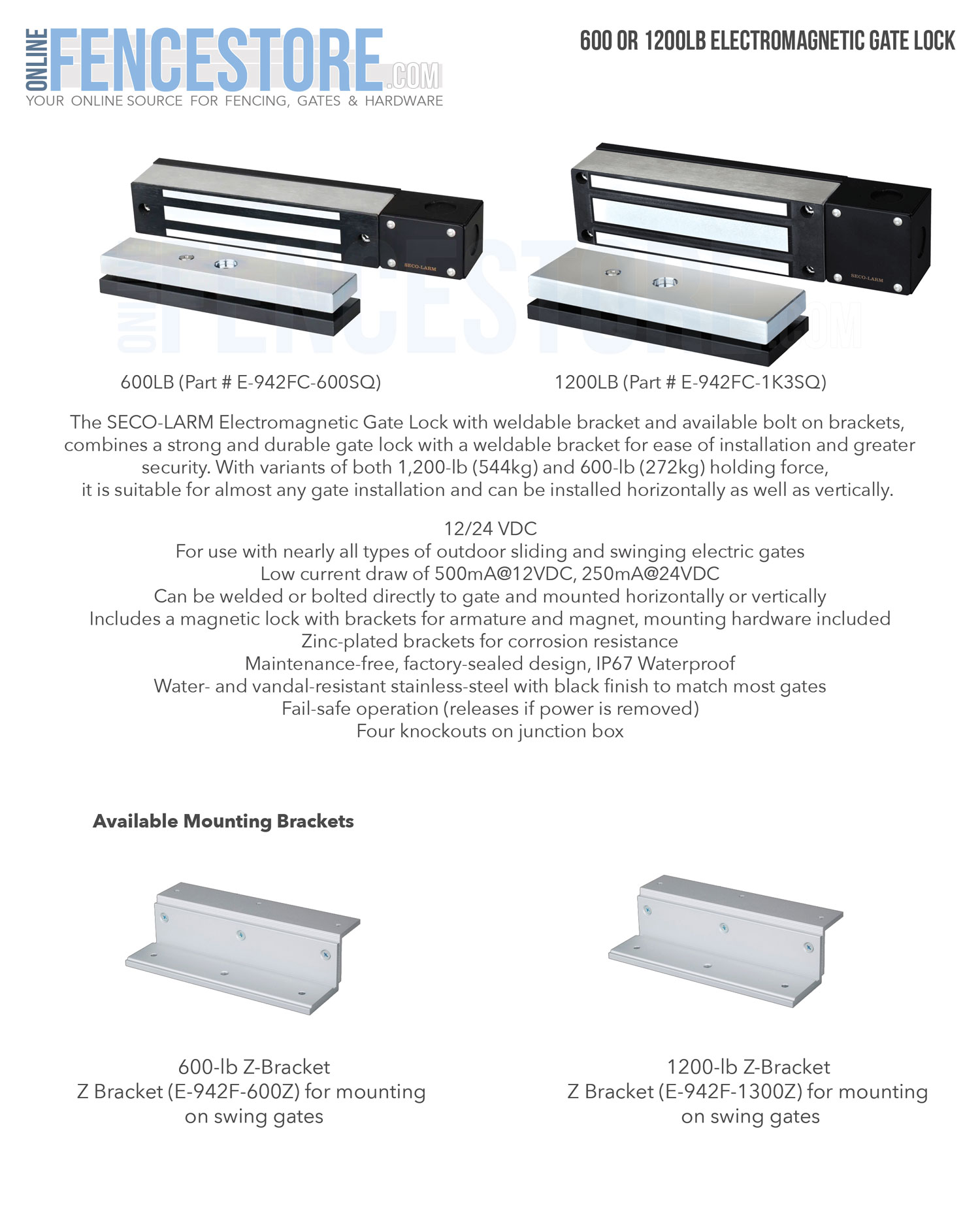

600LB (Part # E-942FC-600SQ), 1200LB (Part # E-942FC-1K3SQ)

The SECO-LARM Electromagnetic Gate Lock with weldable bracket and available bolt on brackets, combines a strong and durable gate lock with a weldable bracket for ease of installation and greater security. With variants of both 1,200-lb (544kg) and 600-lb (272kg) holding force, it is suitable for almost any gate installation and can be installed horizontally as well as vertically.

12/24 VDC
For use with nearly all types of outdoor sliding and swinging electric gates
Low current draw of 500mA@12VDC, 250mA@24VDC
Can be welded or bolted directly to gate and mounted horizontally or vertically
Includes a magnetic lock with brackets for armature and magnet, mounting hardware included
Zinc-plated brackets for corrosion resistance
Maintenance-free, factory-sealed design, IP67 Waterproof
Water- and vandal-resistant stainless-steel with black finish to match most gates
Fail-safe operation (releases if power is removed)
Four knockouts on junction box
