Spear Point Top Aluminum Single Gates

Spear Point Top - Aluminum Single Gates
Posts & Fence Panels Sold Separately. Add-on hardware options are availble.

Available Heights
36in (3ft), 48in (4ft), 54in (4.5ft), 60in (5ft) Flush Bottom, 72in (6ft) 4 Rail
Need a 48in Flush Bottom or 60in Non-Flush Bottom? No Problem. All heights can have the bottom rail configured to be Flush Bottom or Non-Flush Bottom on request. To order a configuration that is not shown, please comment in the Customer Notes field the different bottom configuration that you would like. For example: "36in Flush Bottom" or "60in Not Flush Bottom"

Available Widths
36in (3ft), 48in (4ft), 60in (5ft), 72in (6ft)
In order to accomodate different hardware options, we recommending leaving a 1-1/2in gap between the gate and the gate posts/columns.

Picket Spacing
Standard spacing is 3-13/16in and double spacing is 1-5/8in. The 1-5/8in spacing is the perfect choice for small pets.

Avaiable Top Designs
Flat Top or Arch Top

Available Hardware Options
Add Standard Hardware Option includes (2) 5in self-closing hinges and (1) standard gate gravity latch. Add Pool Code Hardware Option includes (2) D&D Technologies TruClose self-closing hinges and (1) D&D Technologies MagnaLatch top pull gate latch.

Standard                                Pool Code

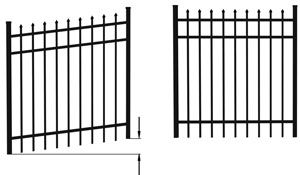

Slope Option
When installing a gate on a hill, the gate needs to be fabricated with a slope that matches the slope of the hill. We would require a measurement in inches for the slope.

            Slope In Inches

Visit our YouTube channel to see how to measure for a slope gate.

Available Colors
Black

ICC Swimming Pool Code Approved Heights
Standard Picket Spacing: 60in Flush Bottom, 72in
Double Picket Spacing: 48in, 54in, 60in, 72in
Pool Code Gate Hardware Required. Check local codes before purchasing.

Gate Specifications
Material: 6063-T5 Aluminum
Coating: AAMA 2604 Approved Polyester Powder Coat
Pickets: 5/8in Sq. x 0.050in Wall Rails: 1in Sq. x 0.055in Wall
Uprights: 1-1/2in Sq. x 0.100in Wall
All welded construction.

Additional Resources

General Specification Sheet

Warranty Information
We offer a limited warranty on all of our aluminum fence products. For full warranty information visit our "Warranty" page HERE.
